    4200 SM Soft Rock

    Operating weight 204,300 kg
    Engine Power Tier 0 1,194 kW
    Engine Power Tier 1 1,119 kW
    Emission Standard USA/Canada US EPA Tier 2, outside US EPA Tier 0
    Tải Brochure 4200-SM-Soft-rock-Catalog.pdf
    Liên hệ

    Các đặc điểm nổi bật

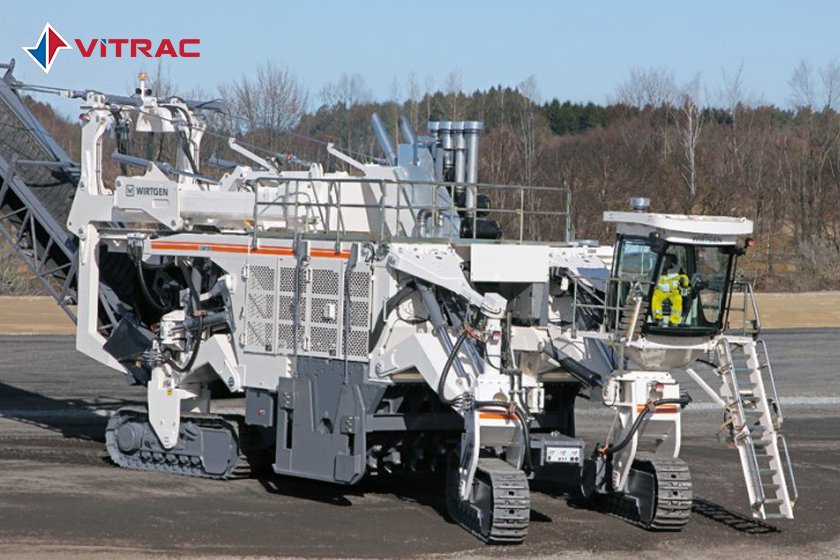

    • The surface miner with the highest production rates when it comes to the selective mining of hard or soft rock.

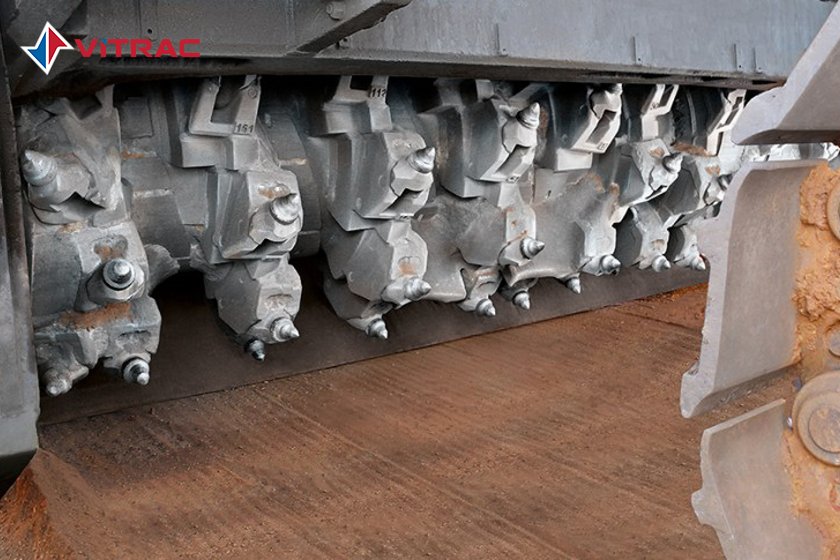

    • The 4.20 m cutting drum unit – tailored precisely to the specified application – with a cutting depth of 830 mm in soft rock guarantees high production rates at minimum tool wear.

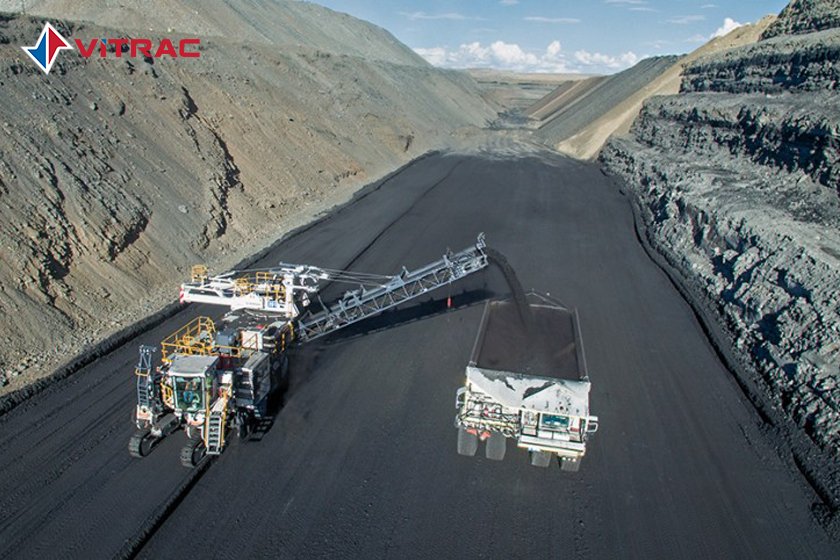

    • Trucks with a load capacity of between 120 and 220 tons can be loaded using the powerful liftable and slewable rear-loading conveyor.
    • With an annual mining capacity in soft rock of up to 12 million tons, the miner is ideal for large-scale opencast mining.

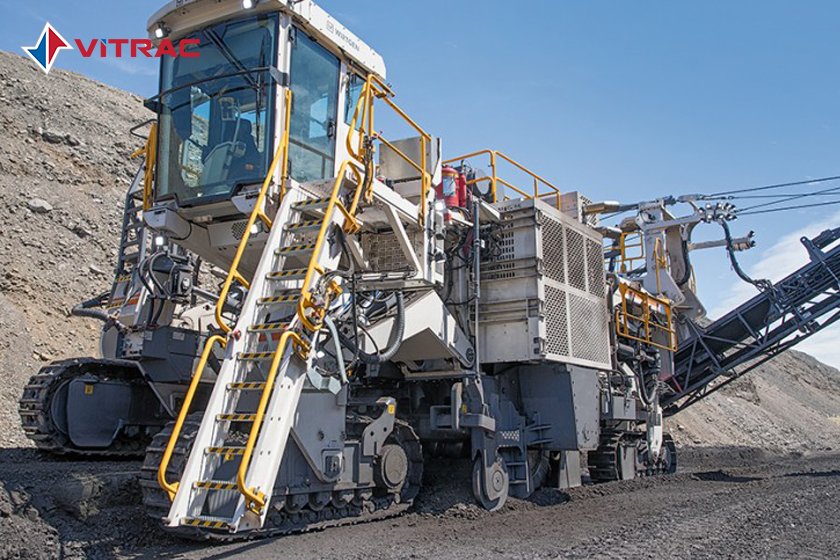

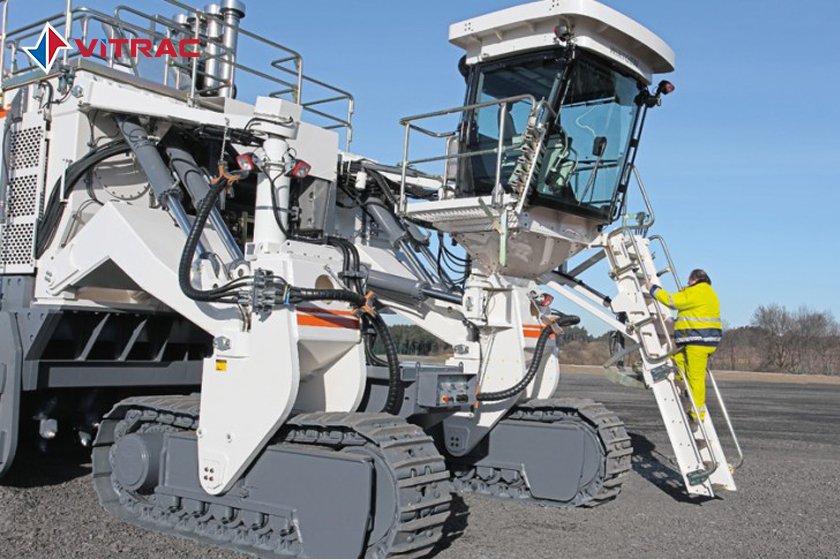

    • The fully glazed operator's cabin offers heating and air-conditioning, soundproofing and anti-vibration mounting to ensure non-tiring, productive machine operation.

    Các kích thước

    Cuttting width mm 4200
    Cuttting depth mm  0 - 830
