Intuitive controls

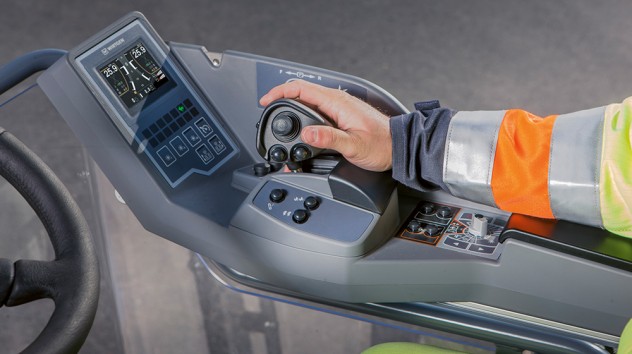

Multifunctional armrest for small and compact milling machines
The small and compact milling machines
feature a multifunctional armrest which combines all controls required
for the highly automated milling process. The multifunctional,
individually adjustable armrest combines innovative design and perfect
user-friendliness. Important information is displayed on the colour
control screen. The multifunctional armrest has been fully integrated
into the standardized operating concept of the entire fleet of WIRTGEN
small milling machines and allows productive operation right from the
start.
Multifunctional control screen for large milling machines
The multifunctional control screen provides clear information on
operational parameters and maintenance details. User-friendly diagnostic
tools with clear illustrations ensure the transparency of diagnostic
procedures. Continuous logging of events during the milling process is
yet another useful feature. In addition, the control system displays
information such as the weight and volume of the material milled, size
of the milled area or number of trucks loaded automatically after manual
entry of the material density and milling width. These job data enable
easy logging of daily production rates.

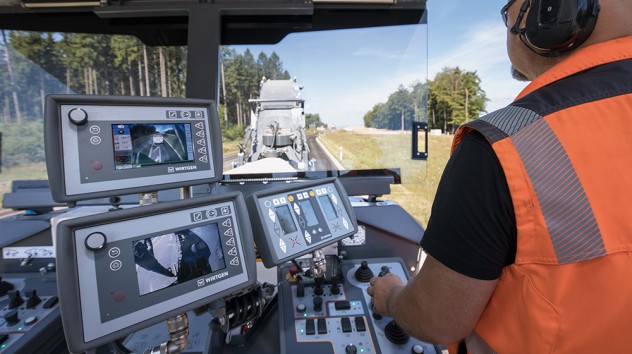

The control screen can be switched to
camera mode to monitor important work processes. Two or six cameras with
high-resolution colour screens can be installed in accordance with
customer specifi cations. When using six cameras, an additional camera
screen is installed to allow two camera views to be displayed
simultaneously.

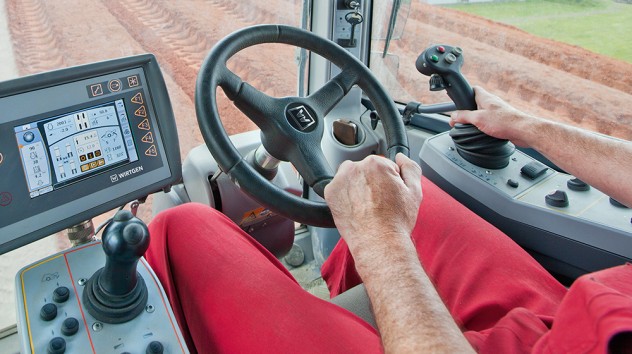

Multifunctional joystick and multifunctional control display for cold recyclers and soil stabilizers
Ergonomically designed controls are integrated in both arm consoles.
Arranged within easy reach, they allow intuitive operation. All
important machine features have been grouped together intelligently in
the multifunctional joystick of the right-hand arm console and can
therefore be performed with effortless ease.

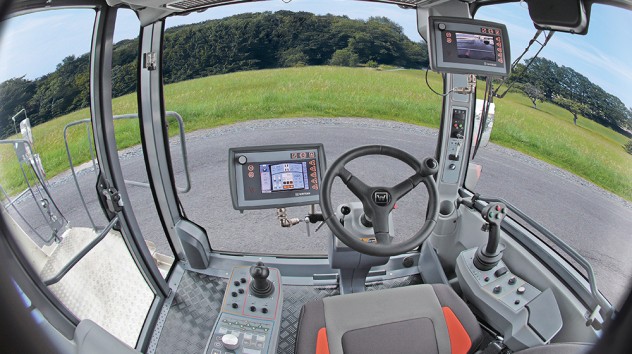

The multifunctional control screen
provides clearly structured information on operating parameters and
maintenance details. Clearly structured, self-explanatory menus enable
individual pages to be called up quickly.

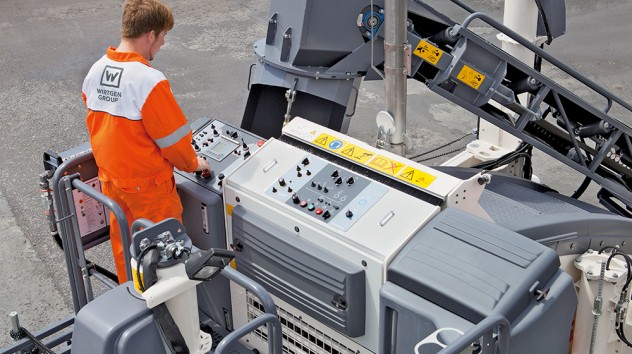

Flexible control panel and multifunctional display for slipform pavers
Everything on the operator’s platform of the slipform paver is arranged
with great clarity and ergonomic principles in mind. The
state-of-the-art graphic screen is located in the centre of the control
panel: the multifunctional display keeps the operator informed of all
relevant operating parameters on an event-driven basis. Handling of the
paver via the control screen is easy – and is made even easier by
clearly identifiable symbols independent of the national language. The
control panel can be placed on the left or right side of the paver, thus
always offering a perfect view of the entire paving process.

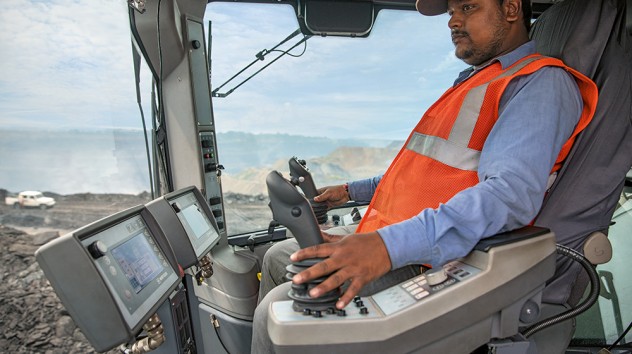

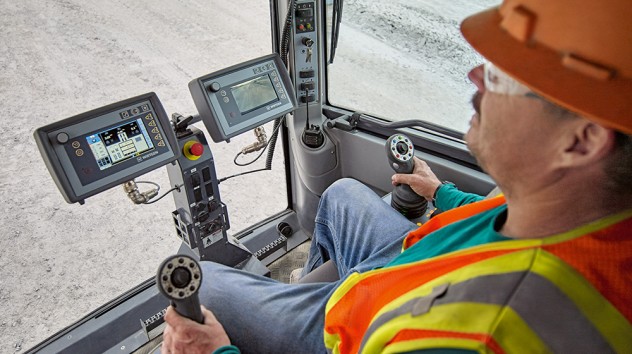

Multifunctional joysticks and control display for Surface Miners
The ergonomically designed controls have been integrated into the
armrest of the driver’s seat. All important machine features have been
intelligently combined in the multifunctional joysticks.
