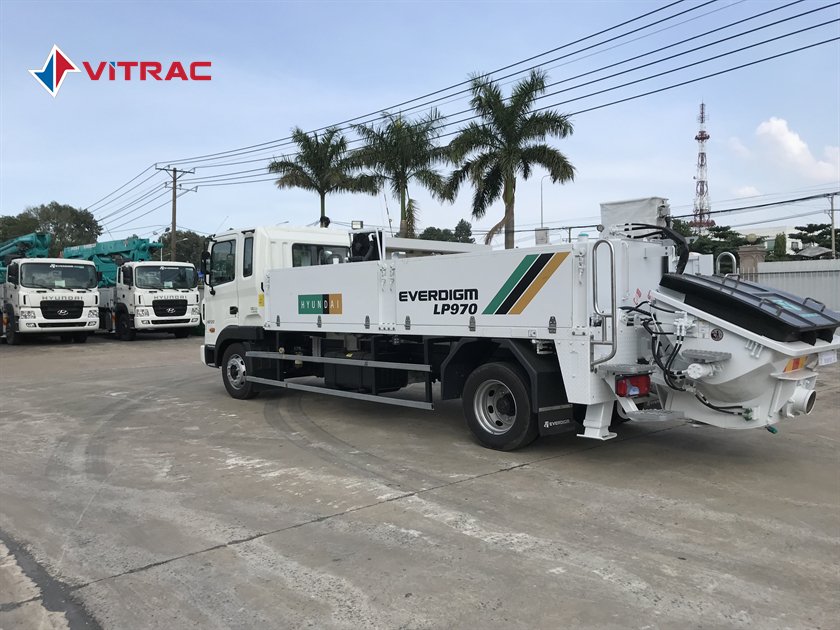

    ELP970

    New
    Base truck Hyundai HD120
    Hydraulic pump system FFH Closed Free Flow Hydraulic
    Main pump A4VG125
    Concrete output 90 m3/h
    Year of Manufacture 2018
    Country of Origin South Korea
    Location Dongnai
    TCM ELP970.pdf
    Download Brochure ELP970-Catalog.pdf


    Contact

    SPECIFICATION AND BASE TRUCK

     Item  Unit  ELP970
     Pump Cell    1409
    Del. Cyl. Storke/Diameter   mm  1,400/200
    Max,Theo.Concrete Output(Rod/Piston)  m³/h  90/60
    Max.Theo.Concrete Pressure(Rod/Piston)  kg/m³  71/106
    Max. Theo. Vertical Transfer
    		  m  110
    Max.Theo.Horizontal Transfe   m  250



    FEATURES OF HYUNDAI BASE TRUCK

    High-end Hyundai base truck HD120, output 380PS

    Wooden-paneled cabin, electric-controlled window, extended cabin (double cabin)

    High-end seats provide comfort in operation

    Lifting cabin by electricity  Emission standard of Euro 4, the exhaust gas recirculation engine - burn twice, do not use additional Adblue solution Tubeless tire
