    ETP1009

    New
    Engine DOOSAN
    Hydraulic pump system Rexroth A4VG125
    Main pump flow 2 x 125cc/rev
    Concrete pressure 350kg/cm2
    Exhaust emissions category Tier-1
    Year of Manufacture 2016
    Country of Origin South Korea
    Location Hanoi
    Download Brochure ETP1009-Catalog.pdf


    Contact

    Technical specifications

    General Dimension
    Overall length
    		   7,310mm
    Overall width
    		   2,280mm
    Overall height
    		   2,760mm
    Total weight
    		   7,800kg






    Pumable Reach
    Theoretical Vertical Reach
       Rod side   136m at 92 bar
       Piston side   218m at 148 bar
    Theoretical Horizontal Reach

       Rod side   257m at 92 bar
       Piston side   385m at 148 bar

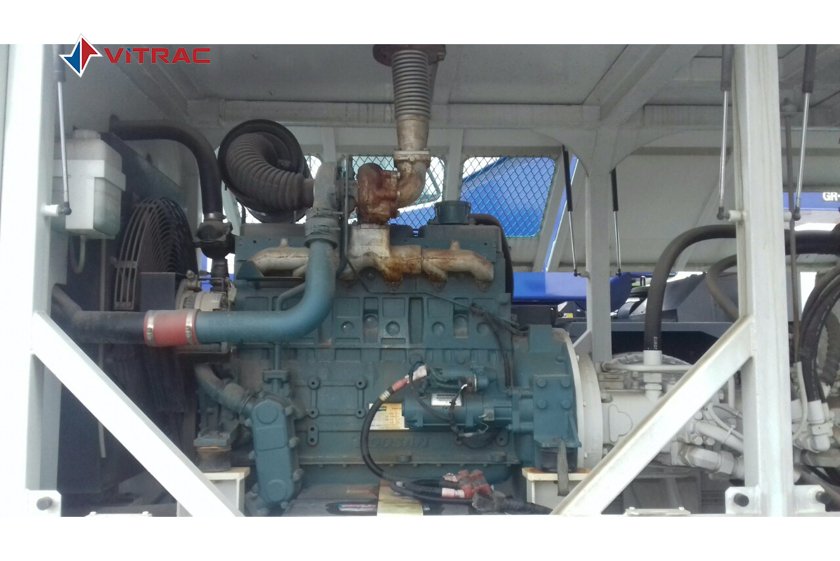

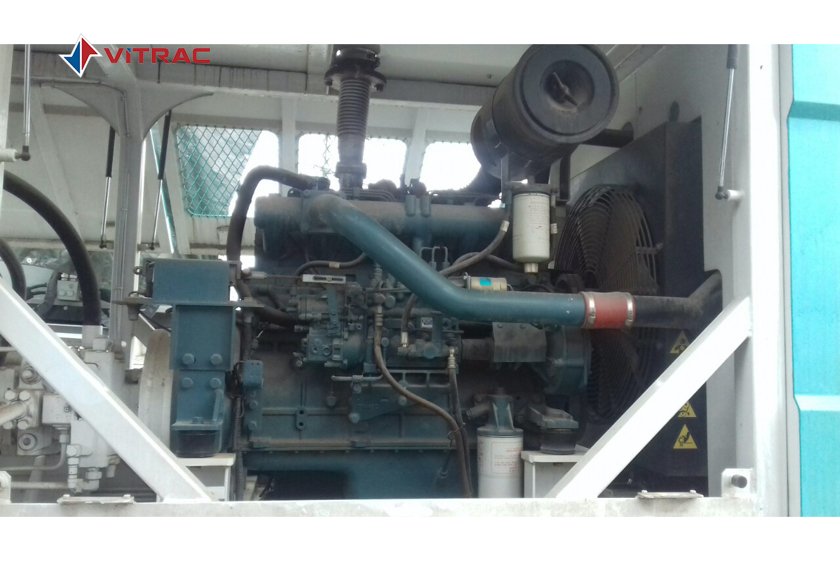

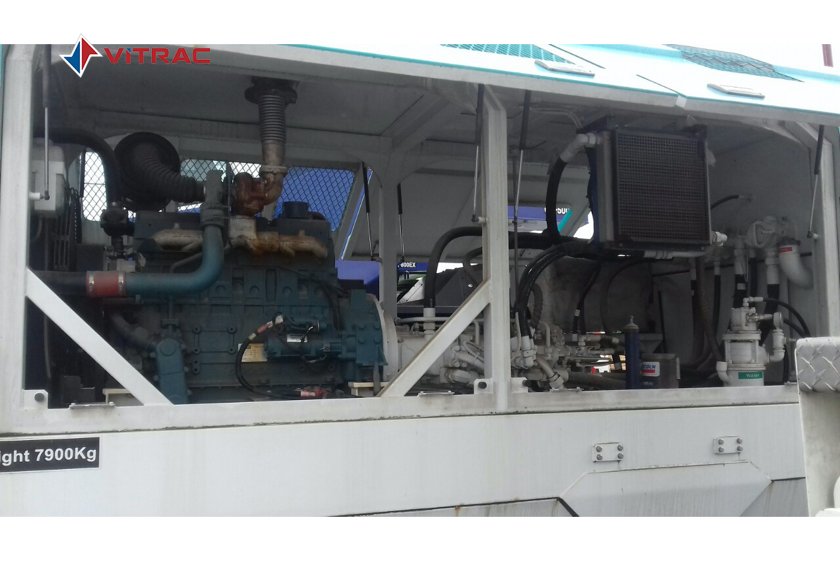

    Engine
    Maker
    		   DOOSAN
    Model
    		   PU086TI, 6 cyl. in line
    Power output
    		   231kW at 2,200rpm
    Torque
    		   1,095 Nm at 1,600rpm
    Displacement
    		   8.071L.
    Bore x Stroke
    		   111 x 139mm
    Emission standard
    		   TIER-1
    Cooling system
    		   Water cooled
    Battery
    		    24V

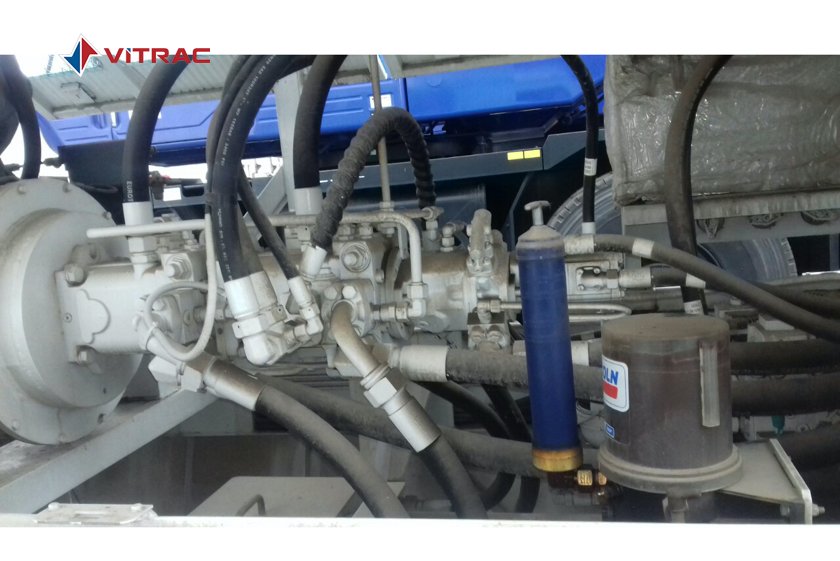

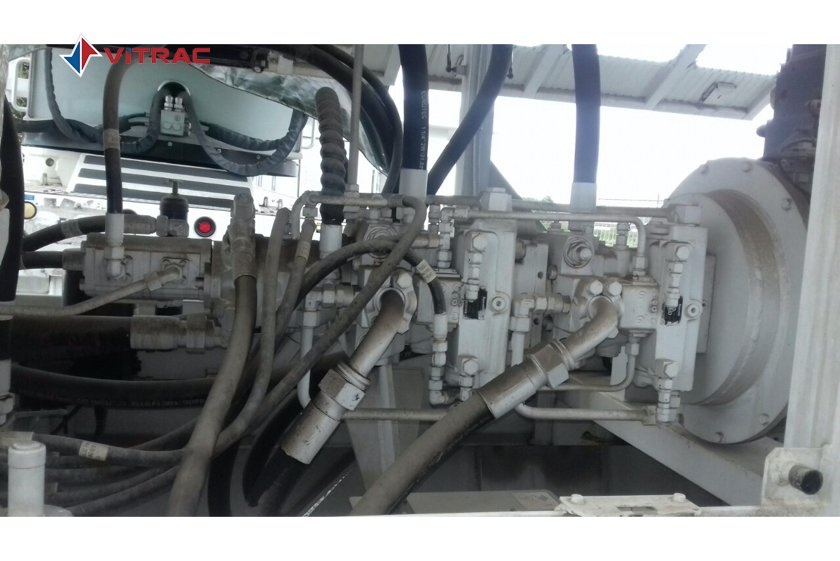

    Hydraulic Pump
    Main pump type
    		   Rexroth A4VG125
    Main pump capacity
    		   2 x 125cc/rev
    Main pump pressure   350kg/cm²
    Accumulator pump
    		   Rexroth A10V28










     * Dimension subject to change on chassis option.
    Concrete Drive
    Max. Theoretical Concrete Output

       Rod side
    		   100m³/hr at 92 bar
       Piston side
    		   65m³/hr at 148 bar
    Drive cylinder
    		   D. 130 x L2,100mm
    Concrete cylinder
    		   D. 200 x L2,100mm
    Transfer
    		   S2015 (D. 200mm-150mm)








    Features
    Outrigger
    		   Front and rear hyd. jack
    Aux support
    		   One front height adjustable
    Axle   1 axle & 2 single tires
    Water pump
    		   6m³/h, at 30 bar
    Water tank
    		   Optional (200L)
    Hopper
    		   EZ Clean Type, 600L
    Hopper lubrication
    		   Auto greasing
    Agitator motor
    		   Double motors on hopper
    Remote control
    		   Optional, wire or wireless
    Service Refill Capacities
    Fuel tank
    		   350L
    Hydraulic oil tank
    		   450L
    Change interval
    		   500h
    Fuel consumption
    		   219g/kW.h at 2,200rpm


    * Technical amendments are reserved. The specifications are subject to change with or without prior notice.
