    ELP1015

    New

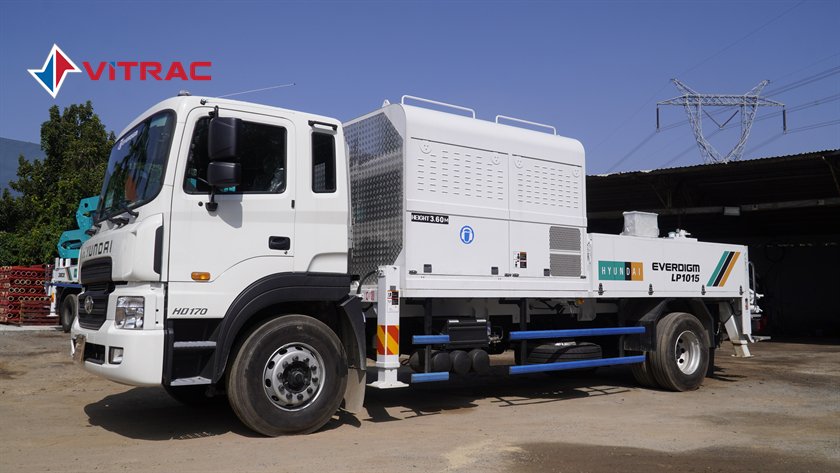

    Base truck Hyundai HD170

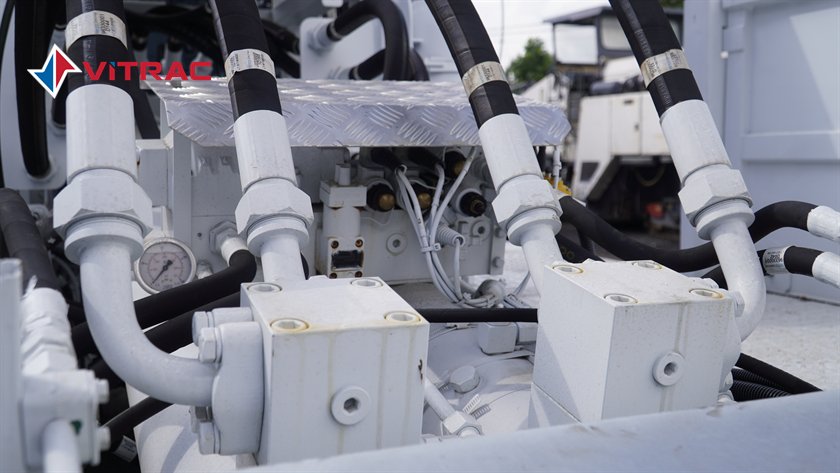

    Hydraulic pump system FFH Closed Free Flow Hydraulic
    Concrete output 150m3 /h
    Concrete pressure 220 bar
    Exhaust emissions category Euro 4
    Country of Origin South Korea
    Year of Manufacture  2019
    Location Danang
    TCM
    		 ELP1015.pdf
    Download Brochure ELP1015-Catalog.pdf
    Contact

    BOOM & PUMP & BASE TRUCK SPECIFICATION

    SPECIFICATION

     Kerb weight
    		  15400 kg
     Max, total mass: Designed/Authorized
    		  15930/ 15930 kg
     Passenger capacity including driver
    		  02 person
     Overall dimensions (L x W x H)
    		  10405 x 2495 x 3590 mm
     Drive configuration
    		  4 x 2
     Wheel space
    		  5850 mm
     Front track
    		  2040

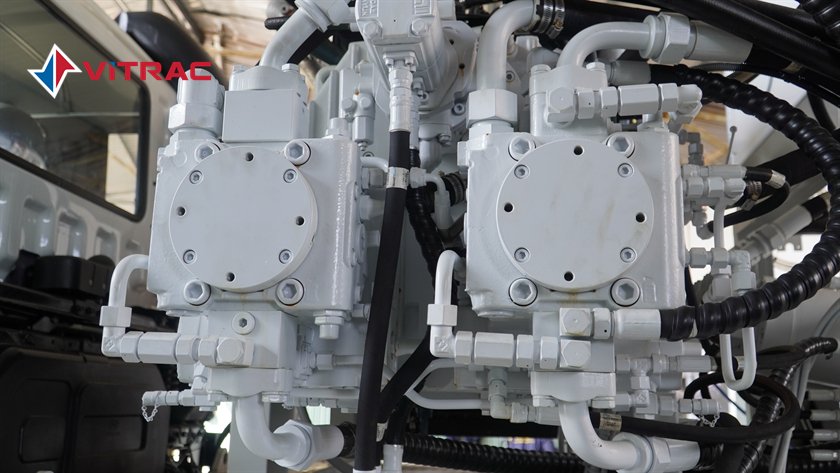

     Drive unit  A4VG180x2
     Core pump  BSF2110
     Hyd. System  Closed System(FFH)



    FEATURES OF HYUNDAI BASE TRUCK


    High-end Hyundai base truck HD170, output 380PS

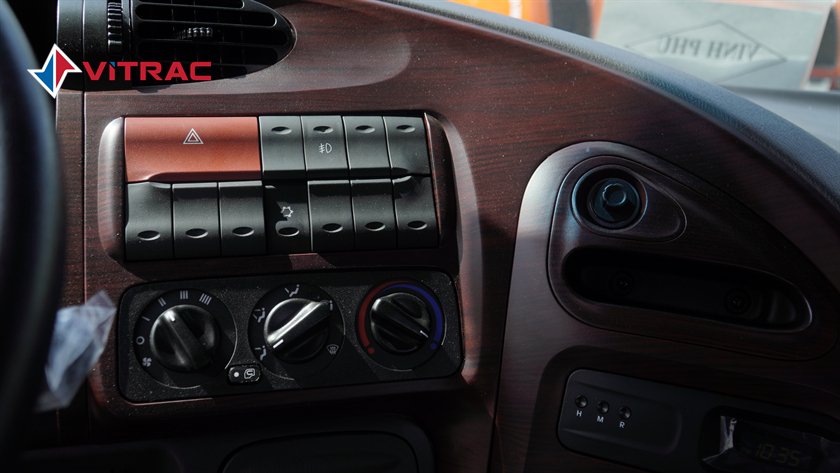

    Wooden-paneled cabin, electric-controlled window, extended cabin (double cabin)

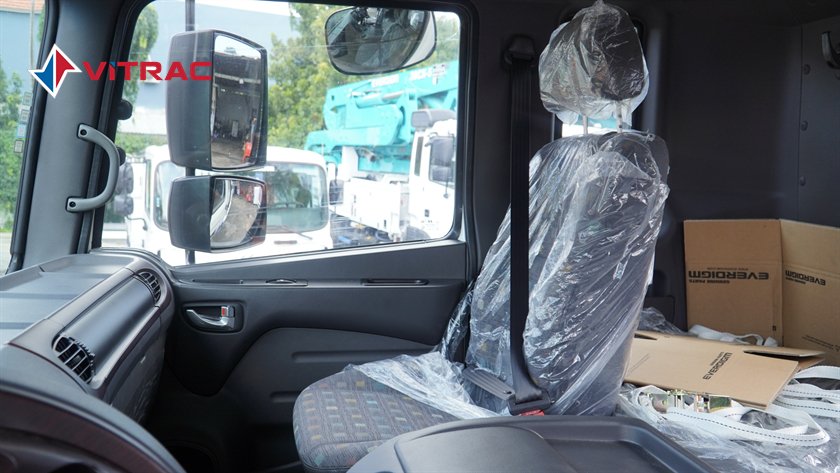

    High-end seats provide comfort in operation
    Lifting cabin by electricity  Emission standard of Euro 4, the exhaust gas recirculation engine - burn twice, do not use additional Adblue solution
    		 Tubeless tire
