| Pave Width |
Pave width
|
0.5 m to 3.5 m*
|

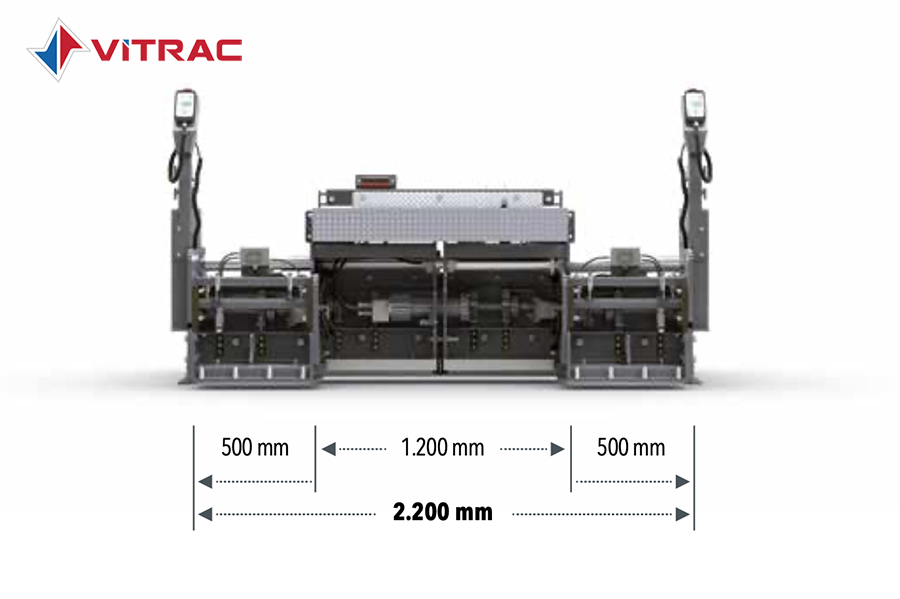

Basic Width
|
1.2 m
|
|
Infinitely Variable Range
|
up to 2,2 m
|
| Compacting systems |
| Versions |
V, TV
|
| Vibrators (V) |
eccentric vibration up to 3,300 rpm |
Tamper (T)
Stroke |
speed up to 1,800 rpm
4.4mm |
| Bolt-on extensions |
| Bolt-on extensions |
25 cm (V/TV) |
| 50 cm (V/TV) |
| 65 cm (TV) |
| Screed heating |
| Heating |
screed plates and tamper bars heated by means of electric heating rods |
| Reduction in width |
| Variable adjustment |
0.5 m to 1.2 m |
| Crown adjustment |
| Mechanical |
-2% to +4% |
| Transport dimensions (basic screed) |
| Width |
1.27 m |
| Depth |
0.76 m |
| Weight |
720 kg (V)
820 kg (TV) |
