| Pave Width |
Pave width
|
0.75 m to 4.2 m (V)*
0.75 m to 5 m (TV)*
|

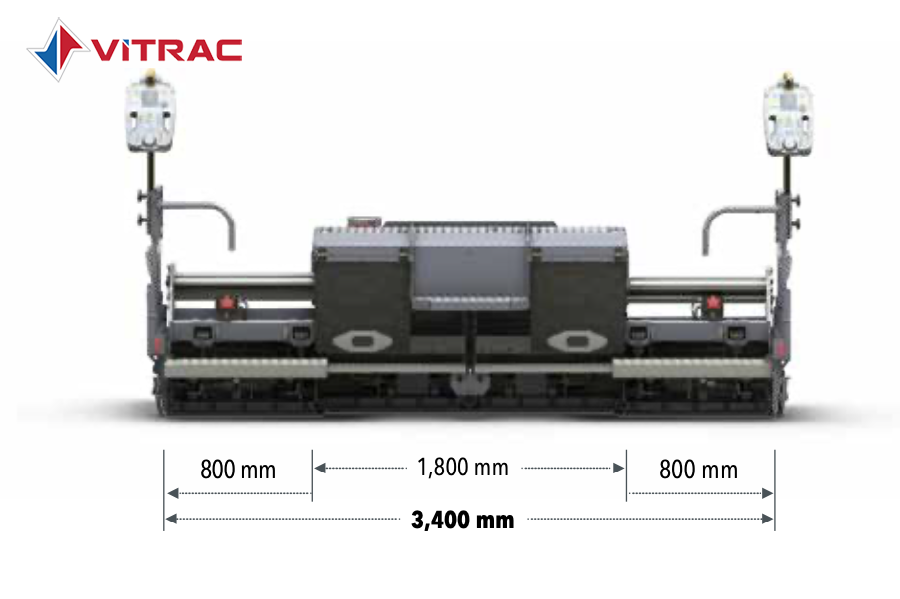

| Basic Width
|
1.8 m
|
|
Infinitely Variable Range
|
up to 3.4 m
|
| Transverse slope |
| Extension units |
up to 2%
|
| Compacting systems |
| Versions |
V, TV
|
| Vibrators (V) |
eccentric vibration up to 3,300 rpm |
Tamper (T)
Stroke |
speed up to 1,700 rpm
4 mm |
| Bolt-on extensions |
| Bolt-on extensions |
25 cm (V/TV) |
| 40 cm (V) |
| 55 cm (TV) |
| 80 cm (TV) |
| Screed heating |
| Heating |
screed plates and tamper bars heated by means of electric heating rods |
| Reduction in width |
| Cut-off shoes |
52.5 cm |
| Crown adjustment |
| Mechanical/optional hydraulic adjustment |
-2.5% to +3%, M, W or parabolic profiles possible
|
| Transport dimensions (basic screed) |
| Width |
1.8 m |
| Depth |
1.1 m |
| Weight |
1,350 kg (V)
1,550 kg (TV)
|
