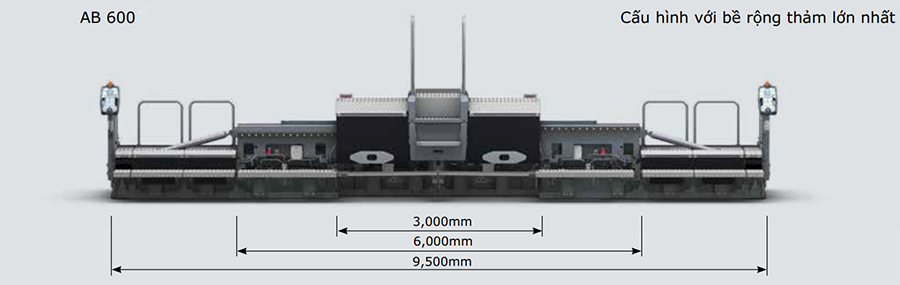

| Pave Width |
Pave width
|
3 m to 9.5 m*
|
Basic Width
|
3 m
|
|
Infinitely Variable Range
|
up to 6 m
|
| Compacting systems |
| Versions |
TV, TP1, TP2, TP2 Plus
|
| Vibrators (V) |
eccentric vibration up to 3,300 rpm |
Tamper (T)
Stroke adjustable TP1/TP2
Stroke adjustable TP2 Plus
|
speed up to 1,800 rpm
2, 4 and 7 mm
4, 7 and 9 mm |
Pressure bars (P)
Pulse frequency
Hydraulic oil pressure |
driven by pulsed-flow hydraulics
68 Hz
up to 120 bar, infinitely adjustable |
| Bolt-on extensions |
| Bolt-on extensions |
25 cm |
| 75 cm |
125 cm
|
| Screed heating |
| Heating |
screed plates, tamper bars and pressure bars heated by means of electric heating rods |
| Transverse slope |
| Extension units |
up to 2% |
| Crown adjustment |
| Hydraulic adjustment |
2.5% to +5%*, M, W or parabolic profiles possible |
| Transport dimensions (basic screed) |
| Width |
3 m |
| Depth |
1.28 m (TV)
1.41 m (TP1/TP2/TP2 Plus) |
| Weight |
3,650 kg (TV)
4,000 kg (TP1)
4,350 kg (TP2)
4,750 kg (TP2 Plus) |
